Transformers



For hot wire foam cutting power supplies
 and other applications



Caution: shorting or overloading the secondary windings can burn out and ruin any transformer in a very short time.  All transformers are tested at rated load and guaranteed in proper working order before shipping.  Damaged transformers are not returnable.



Included $12.50 shipping is for USA only.  For Canada add an additional $34.00 on the shipping page for 1 to 2 transformers (an extra $34.00 each for 300VA).  All other countries add $64.00 on the shipping page for 1 to 2 transformers (an extra 64.00 each for 300VA).


See the Wire/Transformer Selection page and wire calculator page for more information about how to choose the right wire and transformer for your application.


See the Power Supply Design Page for information on designing and building your own AC power supply for foam cutters, plastic benders, etc.

                Quick Select: Click on the transformer voltage for the size you want to jump to that transformer
25VA: 4.5V/9V 6V/12V
50VA: 3V/6V 6V/12V 9V/18V 12V/24V
100VA: 3V/6V 6V/12V 9V/18V 12V/24V 18V/36V 24V/48V
150VA:   6V/12V 9V/18V 12V/24V 18V/36V 24V/48V
200VA:   6V/12V 9V/18V 12V/24V 18V/36V 24V/48V
300VA:   6V/12V 9V/18V 12V/24V 18V/36V 24V/48V

Catalog# XFR0204E

SOLD OUT until about May 2017

25VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 4.5 Volt Outputs
Series connected secondaries:
   9 volts, 2.8 amps max rated output

Parallel connected secondaries:
   4.5 volts, 5.5 amps max rated output
Wt: 1 lbs 12 oz
dimensional Drawing (coming)

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $13.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $20.50

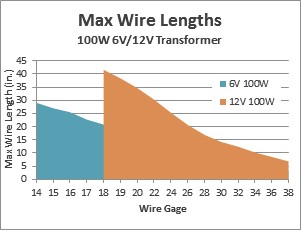

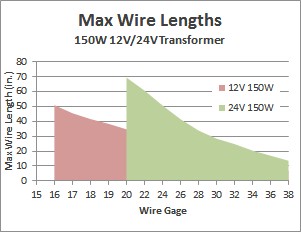

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.




Catalog# XFR0206E

25VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 6 Volt Outputs
Series connected secondaries:
   12 volts, 2.1 amps max rated output

Parallel connected secondaries:
   6 volts, 4.2 amps max rated output
Wt: 1 lbs 12 oz
dimensional Drawing (coming)

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $13.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $20.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.

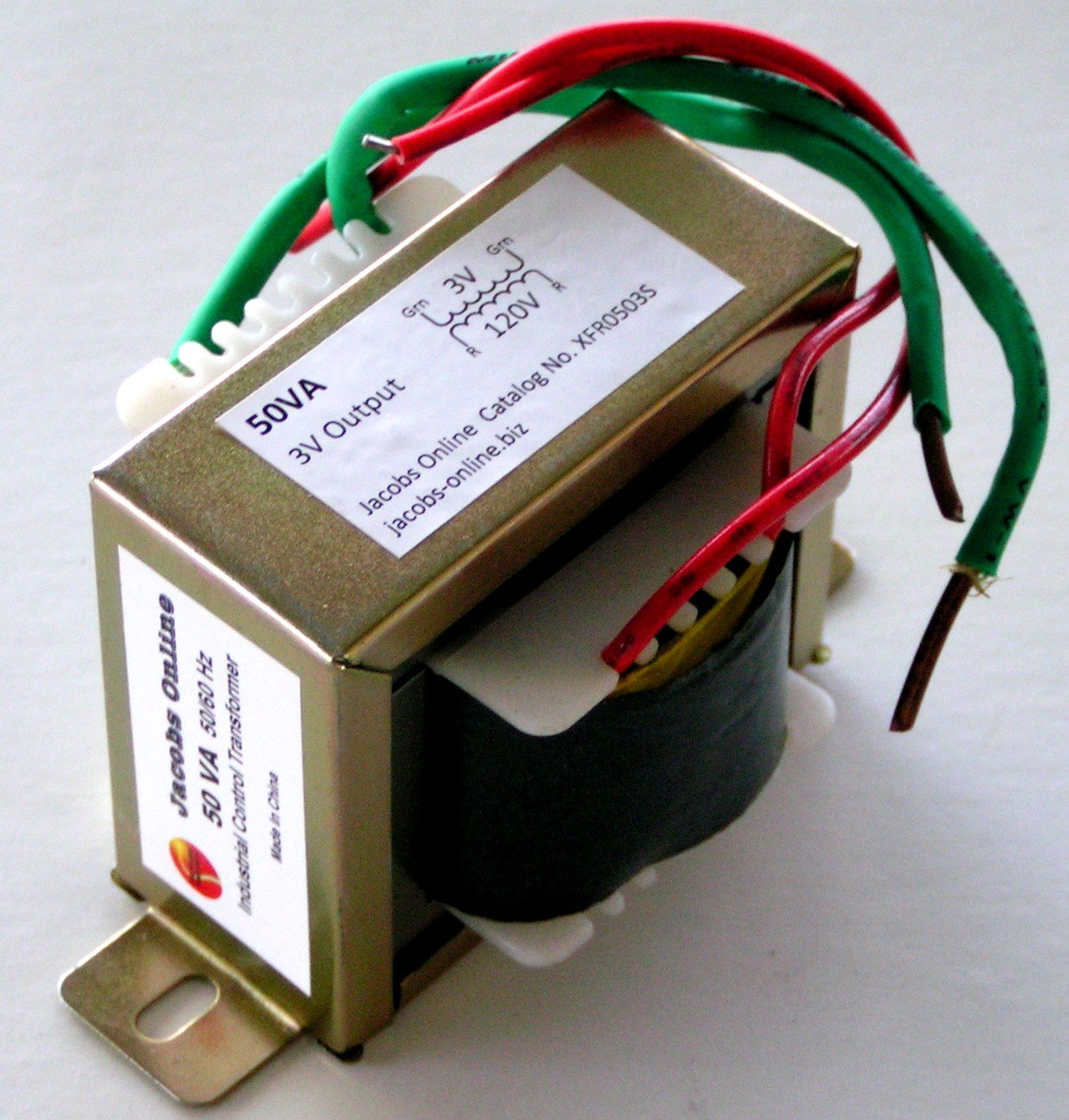

Catalog# XFR0503E

50VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 3 Volt Outputs
Series connected secondaries:
   6 volts, 8.3 amps max rated output
Parallel connected secondaries:
   3 volts, 16.7 amps max rated output
Wt: 2 lbs 12 oz

dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $20.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $2
7.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.




Catalog# XFR0506E

50VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 6 Volt Outputs
Series connected secondaries:
   12 volts, 4.2 amps max rated output

Parallel connected secondaries:
   6 volts, 8.3 amps max rated output
Wt: 2 lbs 12 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $20.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $2
7.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.




Catalog# XFR0509E

50VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 9 Volt Outputs
Series connected secondaries:
   18 volts, 2.8 amps max rated output

Parallel connected secondaries:
   9 volts, 5.5 amps max rated output
Wt: 2 lbs 12 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $20.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $2
7.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.

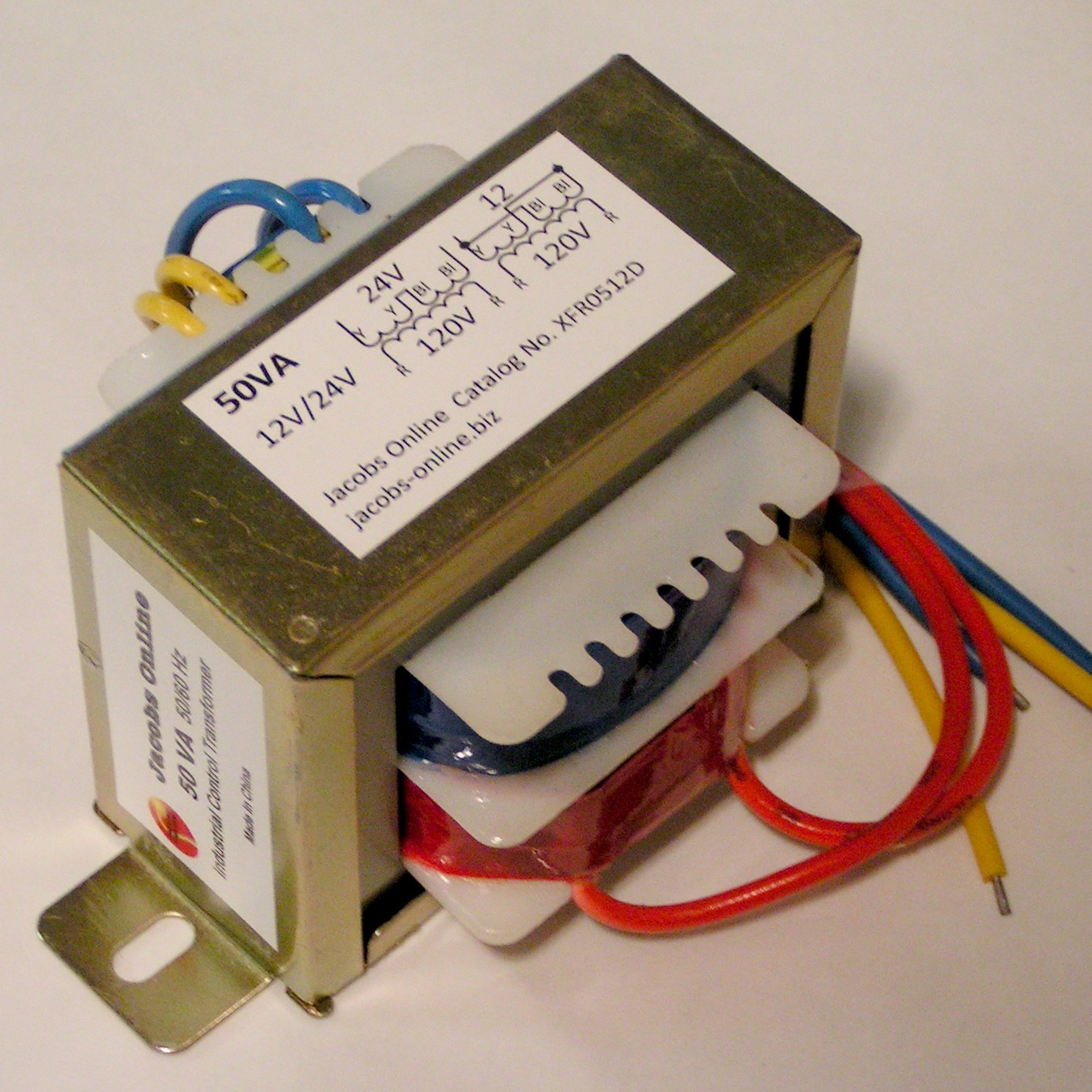

Catalog# XFR0512E

50VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 12 Volt Outputs
Series connected secondaries:
   24 volts, 2.1 amps max rated output

Parallel connected secondaries:
   12 volts, 4.2 amps max rated output
Wt: 2 lbs 12 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $20.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $2
7.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.




Catalog# XFR1003E

100VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 3 Volt Outputs
Series connected secondaries:
   6 volts, 16.7 amps max rated output
Parallel connected secondaries:
   3 volts, 33.3 amps max rated output
Wt: 4 lbs 11 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $32.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $39.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.

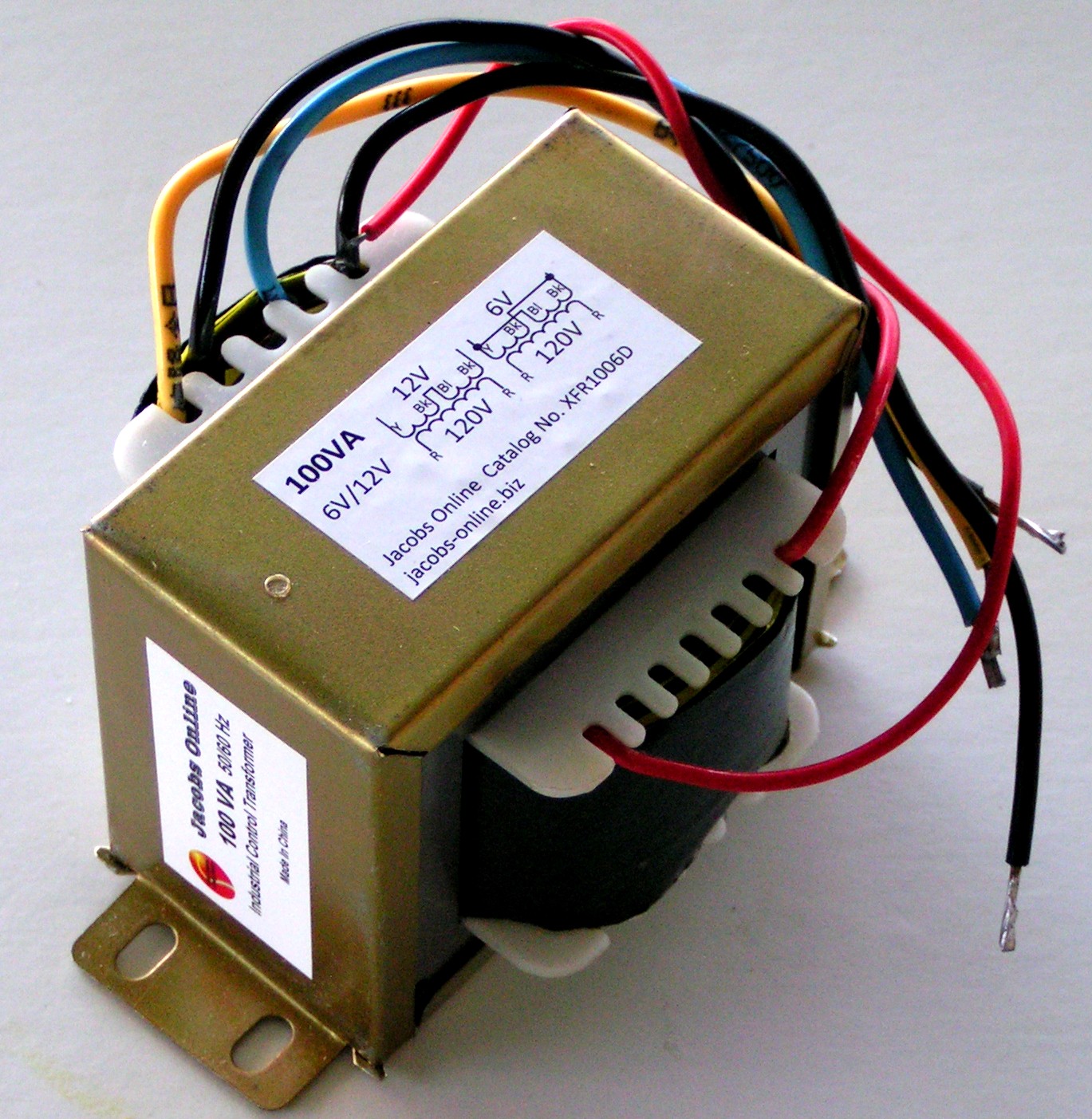

Catalog# XFR1006E

100VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 6 Volt Outputs
Series connected secondaries:
   12 volts, 8.3 amps max rated output
Parallel connected secondaries:
   6 volts, 16.7 amps max rated output
Wt: 4 lbs 11 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $32.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $39.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR1009E

100VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 9 Volt Outputs
Series connected secondaries:
   18 volts, 5.5 amps max rated output
Parallel connected secondaries:
   9 volts, 11.1 amps max rated output
Wt: 4 lbs 11 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $32.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $39.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.

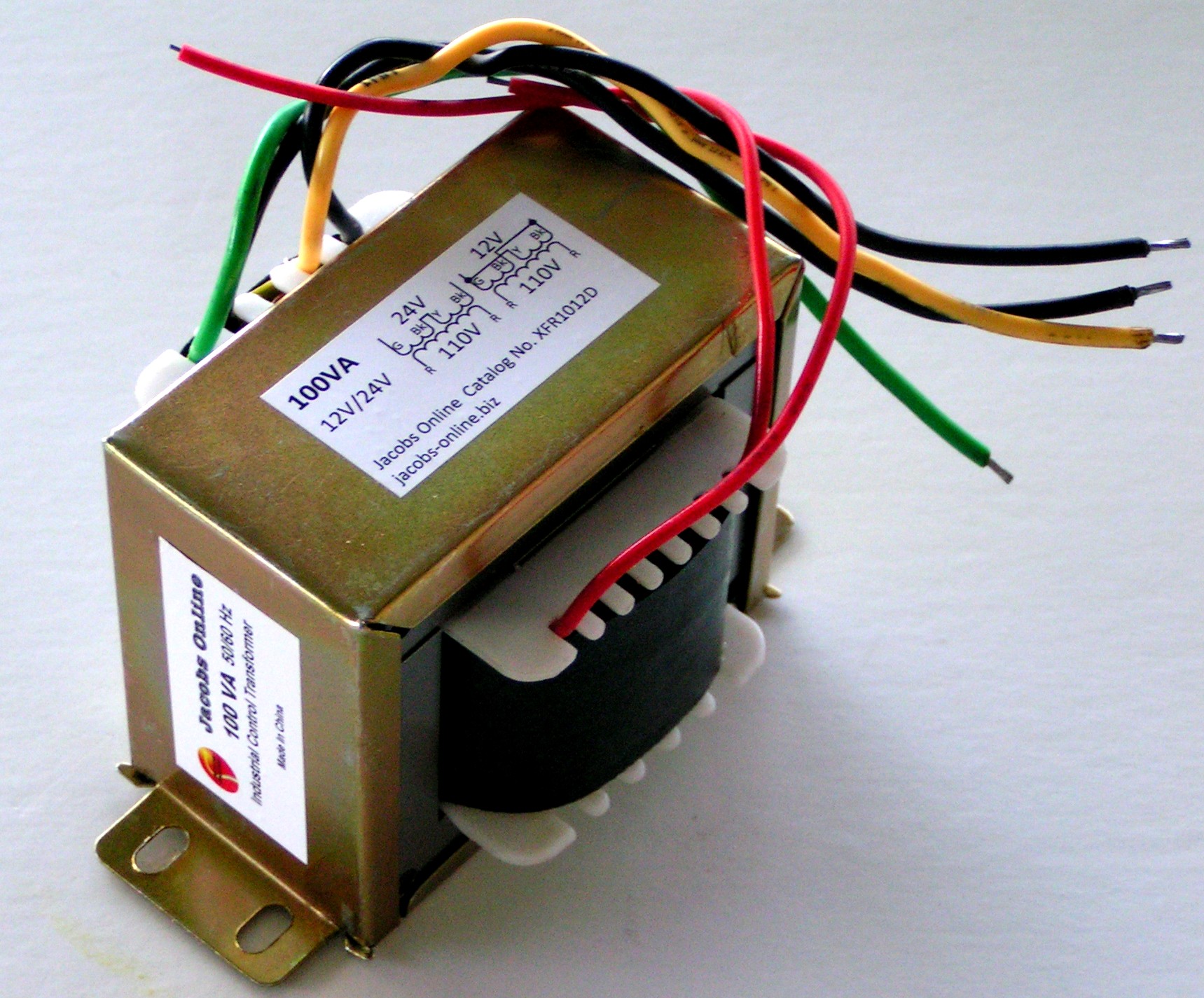

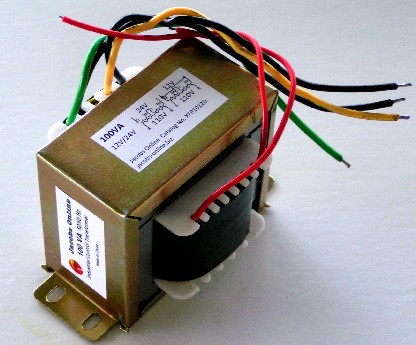

Catalog# XFR1012E

100VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 12 Volt Outputs
Series connected secondaries:
   24 volts, 4.2 amps max rated output
Parallel connected secondaries:
   12 volts, 8.3 amps max rated output
Wt: 4 lbs 11 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $32.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $39.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR1018E

100VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 18 Volt Outputs
Series connected secondaries:
   36 volts, 2.8 amps max rated output
Parallel connected secondaries:
   18 volts, 5.6 amps max rated output
Wt: 4 lbs 11 oz

dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $32.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $39.50

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR1024E

100VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 24 Volt Outputs
Series connected secondaries:
   48 volts, 2.1 amps max rated output
Parallel connected secondaries:
   24 volts, 4.2 amps max rated output
Wt: 4 lbs 11 oz

dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $32.50

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $39.50

CChart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR1506E

150VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 6 Volt Outputs
Series connected secondaries:
   12 volts, 12.5 amps max rated output
Parallel connected secondaries:
   6 volts, 25 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $43.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $50.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR1509E

150VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 9 Volt Outputs
Series connected secondaries:
   18volts, 8.3 amps max rated output
Parallel connected secondaries:
   9 volts, 16.7 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $43.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $50.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.

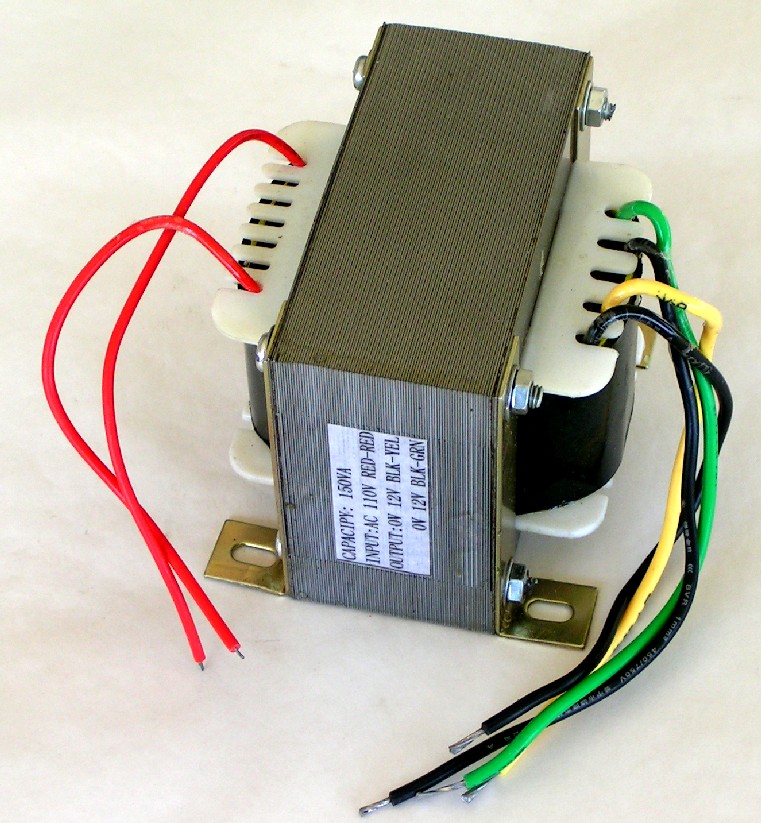

Catalog# XFR1512E

150VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 12 Volt Outputs
Series connected secondaries:
   24 volts, 6.3 amps max rated output
Parallel connected secondaries:
   12 volts, 12.5 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $43.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $50.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR1518E

150VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 18 Volt Outputs
Series connected secondaries:
   36 volts, 4.1 amps max rated output
Parallel connected secondaries:
   18 volts, 8.3 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $43.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $50.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR1524E

150VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 24 Volt Outputs
Series connected secondaries:
   48 volts, 3.1 amps max rated output
Parallel connected secondaries:
   24 volts, 6.3 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing

USA shipping: $12.00 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $43.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $50.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR2006E

200VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 6 Volt Outputs
Series connected secondaries:
   12 volts, 16.7 amps max rated output
Parallel connected secondaries:
   6 volts, 33.3 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing (coming)

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $54.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $61.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR2009E

200VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 9 Volt Outputs
Series connected secondaries:
   18 volts, 11.1 amps max rated output
Parallel connected secondaries:
   9 volts, 22.2 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing (coming)

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $54.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $61.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR2012E

200VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 24 Volt Outputs
Series connected secondaries:
   24 volts, 8.3 amps max rated output
Parallel connected secondaries:
   12 volts, 16.7 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing (coming)

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $54.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $61.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR2018E

200VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 18 Volt Outputs
Series connected secondaries:
   36 volts, 5.5 amps max rated output
Parallel connected secondaries:
   18 volts, 11.1 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing (coming)

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $54.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $61.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR2024E

200VA
110/120 or 220/240 Volt input 50Hz or 60Hz
Dual 24 Volt Outputs
Series connected secondaries:
   48 volts, 4.1 amps max rated output
Parallel connected secondaries:
   24 volts, 8.3 amps max rated output
Wt: 5 lbs 13 oz
dimensional Drawing (coming)

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $54.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $61.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR3006E

300VA
110/120 or 220/240 Volt input, 50Hz or 60Hz
Dual 6 Volt Outputs
Series connected secondaries:
   12 volts, 25 amps max rated output
Parallel connected secondaries:
   6 volts, 50 amps max rated output
Wt: 10 lbs 12 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $75.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $82.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR3009E

300VA
110/120 or 220/240 Volt input, 50Hz or 60Hz
Dual 9 Volt Outputs
Series connected secondaries:
   18 volts, 16.7 amps max rated output
Parallel connected secondaries:
   9 volts, 33.3 amps max rated output
Wt: 10 lbs 12 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $75.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $82.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR3012E

300VA
110/120 or 220/240 Volt input, 50Hz or 60Hz
Dual 12 Volt Outputs
Series connected secondaries:
   24 volts, 12.5 amps max rated output
Parallel connected secondaries:
   12 volts, 25 amps max rated output
Wt: 10 lbs 12 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $75.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $82.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR3018E

300VA
110/120 or 220/240 Volt input, 50Hz or 60Hz
Dual 18 Volt Outputs
Series connected secondaries:
   36 volts, 8.3 amps max rated output
Parallel connected secondaries:
   18 volts, 16.7 amps max rated output
Wt: 10 lbs 12 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $75.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $82.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.



Catalog# XFR3024E

300VA
110/120 or 220/240 Volt input, 50Hz or 60Hz
Dual 24 Volt Outputs
Series connected secondaries:
   48 volts, 6.3 amps max rated output
Parallel connected secondaries:
   24 volts, 12.5 amps max rated output
Wt: 10 lbs 12 oz
dimensional Drawing

USA shipping: $12.50 is automatically charged for shipping for each transformer (excess for more than 1 transformer ordered will be refunded).
International shipping for 1 to 4 transformers: For Canada, add an additional $32.50 on the shipping page, all other countries add an additional $62.50 on the shipping page.

Price: $75.75

Save on shipping when ordering the dimmer and transformer together below.  Both ship for the single $11.00 shipping charge.

Transformer & Dimmer
Price: $82.75

Chart  to the left shows maximum and minimum wire lengths for a given gauge based on 800F foam cutting temperature.  Standard cutting temperature is 600F but higher temperature was used to allow for some adjustment in temperature preferences. Wire shorter than the max will require lower voltage. Too high a voltage on shorter wire may overload and destroy the transformer.

**CHECK IT OUT!**

Nichrome Wire Calculator

 Calculate wire size, length, voltage, and power required for your application.



  Copyright 2011 Jacobs Online





About

Contact

Ordering

Policies

Privacy

Shipping



HOW TO MAKE WIRE WOUND IGNITERS AND ELECTRIC MATCHES

Click Here



Jacobs Rocketry Web Site



Home

High Power Rocketry



Experimental Rocketry
